Installation

There are different ways to install and run SpineOpt. Here, we cover the recommended installation process with Spine Toolbox. For more advanced installations, we refer to the Spine Installation Tools repository.

The process consists of a few simple steps:

  • Install prerequisites
  • Prepare the (optional) folder structure
  • Install Spine Toolbox
  • Install SpineOpt
  • Configure Spine Toolbox for SpineOpt

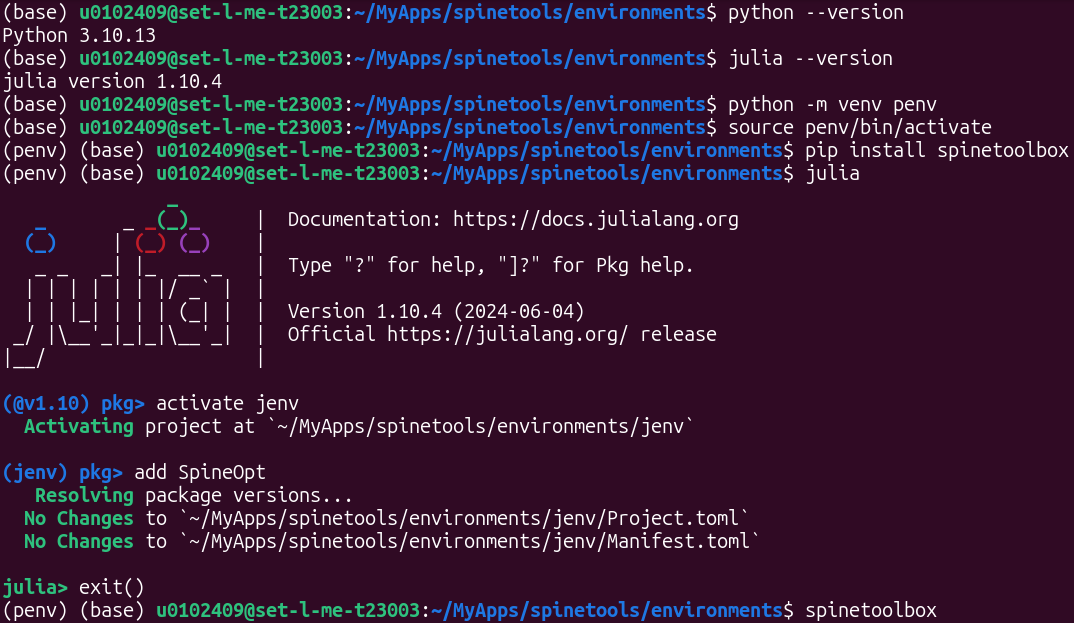

The figures below are a summary of this process that will be further explained in the following sections. Take note of the path in which the terminal is openend, i.e. an environments folder in a spinetools folder, as well as the environments that are active, indicated by the brackets at the start of the line, e.g. (jenv). Also note that the code in the image is for Linux; for Windows the terminal will look a bit different and the line source penv/bin/activate needs to be replaced by call penv\Scripts\activate.

Install spine tools

Configure spine tools

Prerequisites

Spine Toolbox needs Python (version 3.10 or above) and SpineOpt needs Julia (version Long-term support (LTS) release or above). You can check the latest LTS release on the Julia downloads page.

To check whether these are installed properly, open the terminal and type:

python --version
julia --version
Warning

We try to keep up with the latest versions of these programming languages. But sometimes we need a little time.

Tip

Juliaup is a cross platform julia installer and is the recommended way to install and manage your Julia installation.

Note that by default, Juliaup installs the latest julia version. To change to a specific Julia version, for example Julia 1.11, use the following commands in the terminal:

juliaup add 1.11
juliaup default 1.11

To see all the commands type juliaup --help and to see the status type juliaup status. Julia 1.11 should now have an asterisk showing that it is the default version that will be used during the installation of SpineOpt.

Prepare the folder structure

This step is not strictly necessary as you can install spine tools in any folder and any environment. Feel free to choose your own structure. Though for a first installation, it may be easier to follow along.

Let's start with making the folder spinetools in your user directory. On a system administered computer, ask IT for a folder where an application has reading and writing permissions and create the folder there.

To ensure that spine tools do not interfere with other python/julia packages on the system, we'll be installing spine tools in virtual environments and we'll store these environments in a folder originally named environments. We'll need a separate environment for Python and for Julia and we'll give the folders that contain these environments the equally original names penv and jenv. During the creation of the environments, the folders will be created automatically so we don't need to do that now. However, we can already make them now to have an idea of what our folder structure will look like.

The resulting folder structure that we will use, looks something like this:

  • spinetools
    • environments
      • penv
      • jenv

Install Spine Toolbox

As mentioned before, we'll install Spine Toolbox in a virtual environment. Navigate to the environments folder and open the terminal inside that folder. Once the terminal is open, check that the terminal shows the path to the environments folder. Otherwise use the cd command to navigate to that folder. Below you find an example for how that command would look like on Linux:

cd ~/spinetools/environments

To create a Python environment for Spine Toolbox we use the simple command:

python -m venv penv
Info

To explain the code above a bit more, venv is a python command to create a virtual environment in the path penv that we created before. We don't need to create the path upfront and we don't need to navigate to the environments folder as we can simply add the path directly to the venv command and it will create the path if it does not exist already.

python -m venv ~/spinetools/environments/penv

We have created the environment, but we are not inside the environment yet. We need to activate it first. This is different on Linux/mac and Windows. We continue from the same terminal. If you had closed it in the meanwhile, you need to open the terminal again and navigate back to the environments folder.

On Linux (and mac?), we can activate the environment with the activation script that has been created somewhere in the penv folder. To use the activation script, we call the 'source' command.

source penv/bin/activate

On Windows, we can call the 'call' command (notice that the dashes are reversed on Windows).

call penv\Scripts\activate

The terminal should now show that the penv environment is active by (penv) at the start of the line. Spine Toolbox can now simply be installed with pip.

pip install spinetoolbox

To open Spine Toolbox, simply call spinetoolbox from within the Python environment.

spinetoolbox
Warning

Every time you want to open Spine Toolbox, you'll have to activate the Python environment first.

Tip

To ease the process, you can make a 'run_spinetools' script that automatically does this for you. An example can be found in the Spine Installation tools repository.

For Linux, create a 'run_spinetools.sh' (bash) file. The following lines of code should be pasted in that file. Make sure to adjust the path to the actual path of the Python environment that you used to install Spine Toolbox.

#!/bin/bash
cd path/to/environments
source penv/bin/activate
spinetoolbox

You'll also have to give the file the necessary permissions. Depending on your distribution, there may be a built-in way to do this. Otherwise run the 'chmod' command:

chmod +x path/to/script_folder/run_spinetools.sh

For Windows, create a 'run_spinetools.bat' file (you can make a text file and change the extension from '.txt' to '.bat'). The following lines of code should be pasted in that file. Make sure to adjust the path to the actual path of the Python environment that you used to install Spine Toolbox. Note that the call command is necessary in a script like this whereas it is optional when you enter these commands manually, in which case you can simply type the path to the activate file.

cd path/to/environments
call penv/Scripts/activate
spinetoolbox

Install SpineOpt

The process for installing SpineOpt is very similar. If you close Spine Toolbox in the previous step, you can use the same terminal for the installation of SpineOpt. The terminal should indicate that you are still in the environments folder (it does not matter whether the python environment is still active or not). Otherwise, open a new terminal and navigate to the environments folder again.

For the creation of the Julia environment and the installation of SpineOpt, we will be using the Julia REPL. To activate the Julia REPL, simply call 'julia' from the terminal.

julia

We can call the package manager with julia code but we can also enter package manager mode of the REPL by pressing the ] key. the first line should change from 'julia>' to 'pkg>'.

To create the Julia environment, we simply type:

activate jenv

The environment should be created and we enter the environment automatically as indicated by (jenv) at the start of the line.

Now we can add the SpineOpt package to the environment as you would normally install a Julia package.

add SpineOpt

SpineOpt is now available as a Julia package in the jenv environment. Similar to Spine Toolbox, every time you want to use the package you'll have to activate the jenv environment. In Julia, the command to activate the environment is the same as the command to create the Julia environment.

Info

SpineOpt can also be installed from within Spine Toolbox. Spine Toolbox follows a very similar procedure as the one described above but guides you with a wizard. We showed the underlying principle such that you can also install SpineOpt independently from Spine Toolbox.

Configure Spine Toolbox for the use of SpineOpt

In order to use SpineOpt from within Spine Toolbox, we need to point Spine Toolbox to the Julia environment in which we installed SpineOpt. Additionally we can install a plugin with some predefined scripts to run SpineOpt as a Spine Toolbox tool.

Open the Python environment and open Spine Toolbox. If you are still in the same terminal you can simply type spinetoolbox. Otherwise, open a new terminal, activate the python environment and then open Spine Toolbox. For example, on Linux:

source ~/spinetools/environments/penv/bin/activate
spinetoolbox

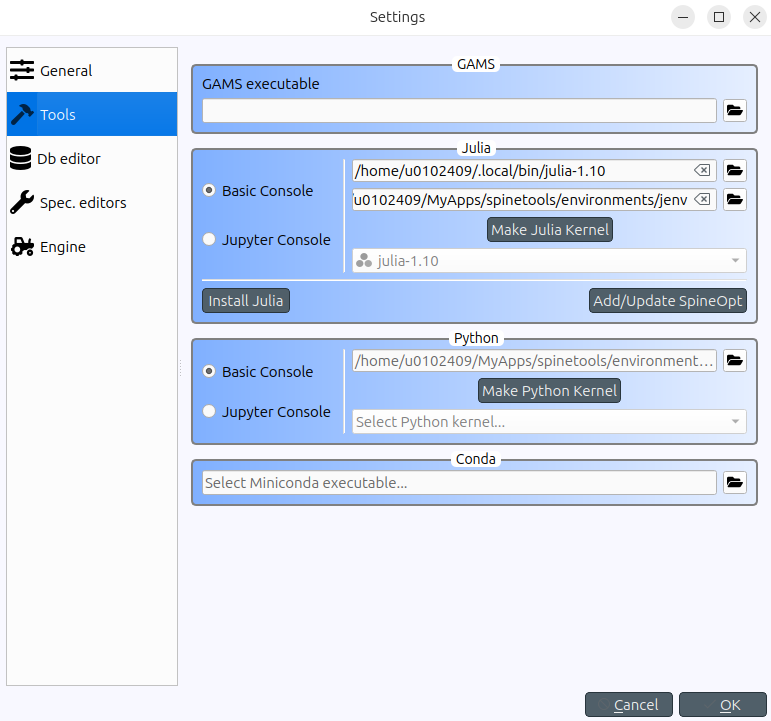

We'll point Spine Toolbox to the Julia environment in the settings. Navigate to 'File > Settings > Tools'. Under 'Julia' there are two paths. The first is for the Julia installation itself. There should be no problems with this path but to be sure do check that it is correct. The second is for the Julia environment. If it is empty it shows 'Using Julia default project'. Put the path to the jenv environment here.

To add the SpineOpt plugin, navigate to 'Plugins > Install plugin ...' and select the SpineOpt plugin.

Next steps

That brings an end to the installation process of Spine Toolbox and SpineOpt. However, before starting a tutorial, we recommend to verify the installation first. If there are any troubles with the installation, you can try troubleshooting.
