Multi-Stage Optimisation Tutorial

In this tutorial we will explain how to create a multi-stage optimisation within a SpineOpt model. The functionality allows multiple models to be defined with outputs from one model passing as inputs to another model. This can be very useful to leverage the flexible temporal structure of SpineOpt to create similar linked models with different structures. For example, using this functionality, one can easily create a long term model which passes investments and long term storage trajectories to a short term operational model.

The Basic Idea

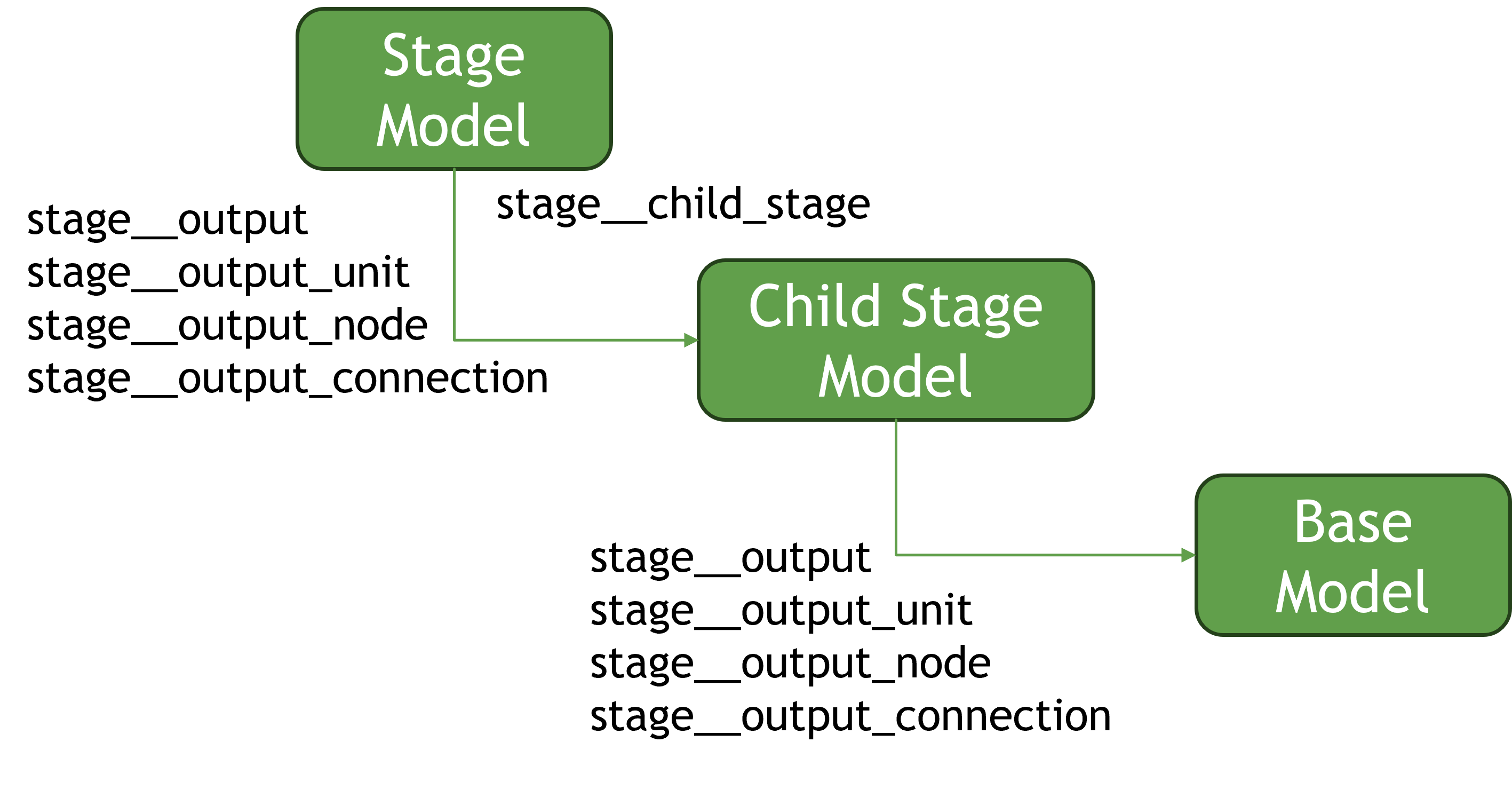

The basic idea is we start with a base SpineOpt model, for example, an operational model. From this, we can specify a stage model (for example, a long-term model). We define the stage model by specifying the unique data which makes it different from the base model. We then link the models by specifying which outputs from the stage model pass as inputs to the base model.

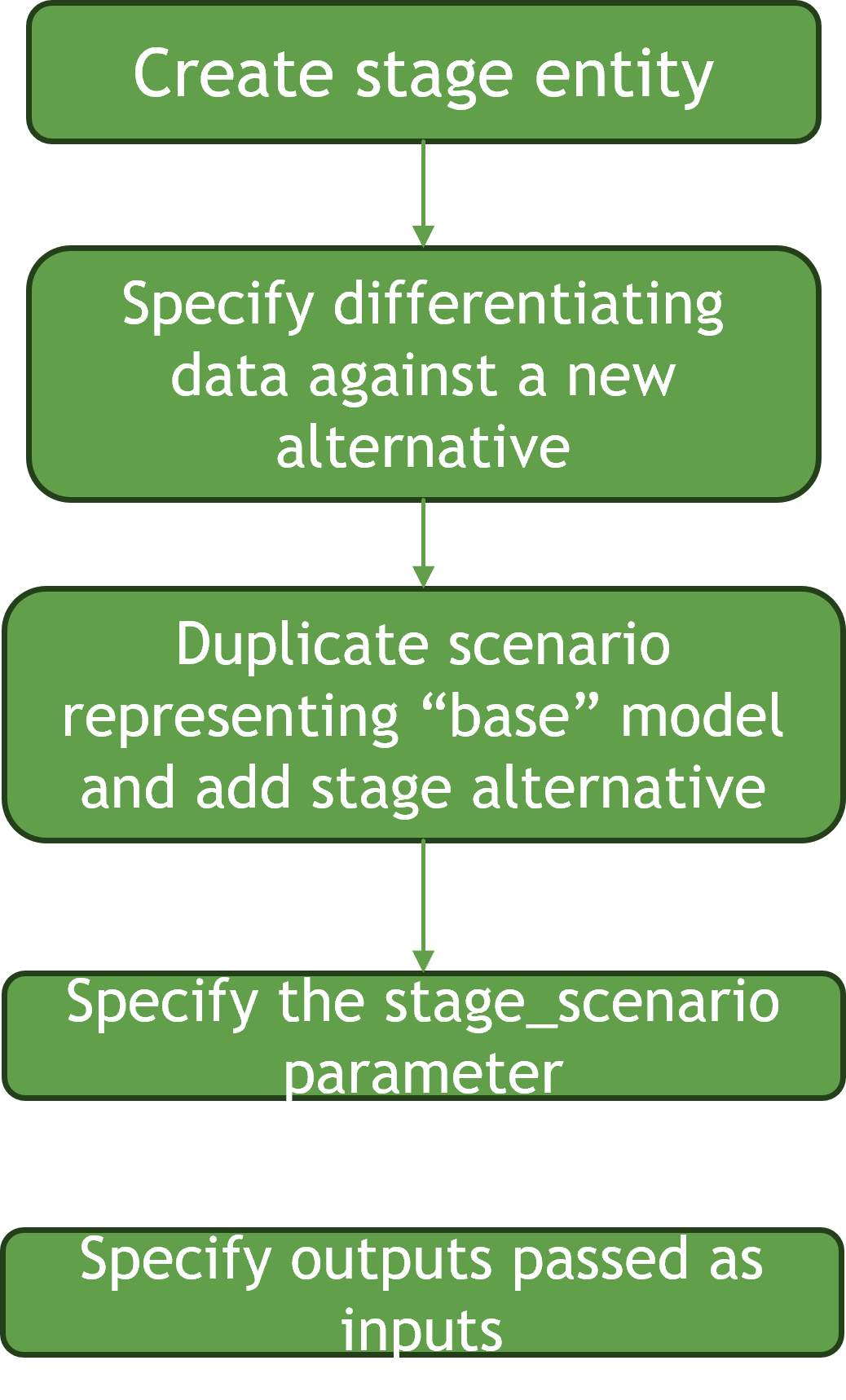

Creating a Stage Model

A stage model is created by creating an entity of class stage.

Specifying the Stage Model Data

A stage model is defined by the data which is unique to it. The is achieved by creating a scenario (stage scenario) which represents the stage model. Usually the base model and stage model will differ only in some limited respects, for example, the temporal structure. In practice, the best way to create the stage scenario is to duplicate the scenario which represents the base model and creating a stage alternative and then adding that altnerative to the stage scenario meaning the base model and stage model will differ only according to the data specified under the stage_altnernative

Specifying which outputs pass from the stage model as inputs to the base model

To specify which outputs pass as inputs to the base model, we use entities of class: stage__output. This links our stage entity with any number of output entites. For example, if our stage entity is named LT_Stage and we wish all unit investment decisions to pass from our stage model as inputs to our base model, we would create a stage__output entity linking LT_Stage and units_invested_available. If we wish to fix inputs in the base model only at certain intervals, we can use the output_resolution parameter.

Using stage__output, outputs for all entities pass from the stage model to the base model. If we wish outputs for specific entities only to be passed, then we use

• stage__output__node
• stage__output__unit
• stage__output__connection

depending on whether the output is associated with a node, a unit or a connection.

Test System

The simple test system is illustrated below.

The test system can be found in JSON form at multistagemodel_tutorial.json

The model must invest in wind, solar, battery and storage in order to satisfy demand. The base model is configured as a rolling operational model with the following temporal structure:

Temporal Resolution:

• Days 0 - 30 (operations: temporal_block) 1h
• Days 31 - 60 (look_ahead: temporal_block) 6h
• Rolling duration: 30D

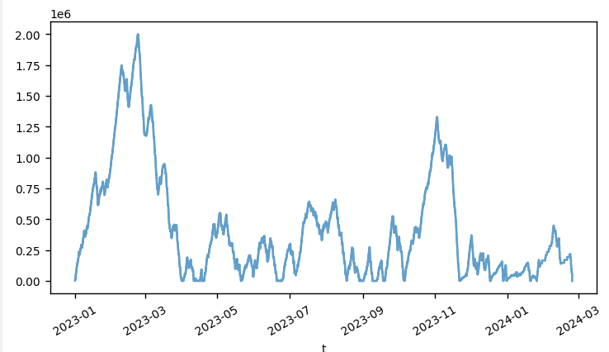

Looking at the node_state result for the h2nodecandidate node we immediately see that it is not well optimised. Because the model is rolling and sees only 60 days at a time, the store is always emptied at the end of the rolling period because no value is seen beyond 60 days.

We can solve this problem using the stage functionality to create a long term model that sees the full year all at once and passes the node state as an input to the base rolling model.

Step 1: Create stage entity

Using Spine Toolbox DB Editor, we right click on the stage entity class and select: "add entities". We will call our new stage entity: LT_Stage

• Commit changes

Step 2: Create stage alternative

Using DB Editor, we click into the alternatives pane and create a new alternative called LT_Stage_Alternative.

Step 3a: Create stage scenario

• Using DB Editor, we click into the scenarios pane and create a new scenario called LT_Stage_Scenario
• Switch to the scenario pivot view by clicking on scenario in the tool ribbon
• Duplicate the base scenario by right clicking on "base" and selecting "duplicate scenario" from the context menu
• Add the base alternative to LT_Stage_Scenario by checking the box. It should indicate "1" indicating that base data gets written first
• Add the LT_Stage_Alternative alternative to LT_Stage_Scenario by checking the box. It should indicate "2" indicating that the LT_Stage_Alternative gets written second, overwriting base data
• Commit changes

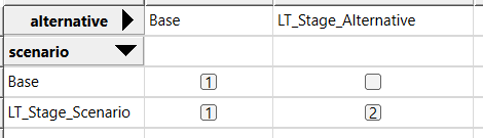

Your scenario/alternative grid should look like this:

Step 3b: Associate scenario LT_Stage_Scenario with the stage model

We need to tell SpineOpt that the LT_Stage_Scenario contains the unique data for the stage entity: LT_Stage

• Select the LT_Stage stage entity
• Switch to the parameter value_pane
• class and entity_byname should be prefilled
• for parameter name, select stage_scenario
• enter the text: LT_Stage_Scenario (this is the textual name of the LTStageScenario scenario we created above)

Step 4: Create LT_Stage data

So what is different about our long term model compared to our operations base model?

• The model doesn't roll, it sees the full year all at once.
• Since it doesn't roll and we see the full year, we don't need the look_ahead temporal_block
• Instead of 1h resolution, we want 6h resolution (otherwise our long term model will take a very long time to solve)
• Our operations temporal_block no longer ends after 30 days.

To implement these changes, we use the LT_Stage_Alternatives to create parameters that will override the corresponding base model data, as follows:

• Turn rolling off for the LT_Stage_Alternative:

  • Select the test_model entity in the model class
  • Switch to parameter value view
  • Class and entity_byname should be prefilled. Select roll_forward in the parameter name field.
  • In the alternative field, select LT_Stage_Alternative
  • In the value field, right click the cell and select edit.
  • Select plain value
  • Select null
  • Commit changes

• Remove the look_ahead temporal block from the LT_Stage_Alternative by:

  • switch back to table view by clicking table in the ribbon
  • switch to the entity_alternative tab
  • select the look_ahead temporal block entity
  • in the bottom row, class and entity_byname should be prefilled. In the alternative field, select LT_Stage_Alternative
  • In the active field, select false
  • Commit changes

• Change the temporal resolution of the operations temporal_block to 6h

  • Select the operations entity in the temporal_block class
  • Class and entity_byname should be prefilled.
  • Select resolution in the parameter name field.
  • Right click value field and select edit
  • Select duration value
  • enter "6h"
  • Commit changes

• remove block_end of the operations temporal_block

  • Select the operations entity in the temporal_block class
  • Class and entity_byname should be prefilled.
  • Select block_end in the parameter name field.
  • Right click value field and select edit
  • Select "plain value"
  • select null
  • Commit changes



Step 5: Specify outputs from the LT_Stage model that pass as inputs to our Base model

We want to make sure that the following Long Term model outputs pass as inputs to the base model:

• All unit investment decisions
• All connetion investment decisions
• All storage investment decisions
• node_state for the seasonal h2nodecandidate node

To pass outputs for all entities for a certain output, we need to create 2-Dimensional entities of class stage__output

• For unit investment decisionss
  • Right click on stage__output class
  • Select: add entities
  • For stage select LT_Stage
  • For output select units_invested_available
• For connection investment decisionss
  • Right click on stage__output class
  • Select: add entities
  • For stage select LT_Stage
  • For output select connections_invested_available
• For storage investment decisionss
  • Right click on stage__output class
  • Select: add entities
  • For stage select LT_Stage
  • For output select storages_invested_available
• Commit changes

To pass node state for the h2_node_candidate, we need to create a 3-Dimensional entity of class stage__output__node

• Right click on stage__output__node class
• Select: add entities
• For stage select LT_Stage
• For output select node_state
• For node select h2_node_candidate
• Commit changes

For node_state, we don't want to overconstrain the operations problem, so we only want the node_state in the operations model to be fixed at intervals, thus allowing some flexibility in the operations model while also following the seasonal trajectory from the long term model. To do this, we use the output_resolution parameter for the stage__output__node we just created above

• Select the stage__output__node we just created above in the tree
• The class and entitybyname fields should be prefilled
• For parameter name, select output_resolution
• Right-click the value field and select edit
• Select duration value
• Enter "30D"
• Commit changes

Run Model

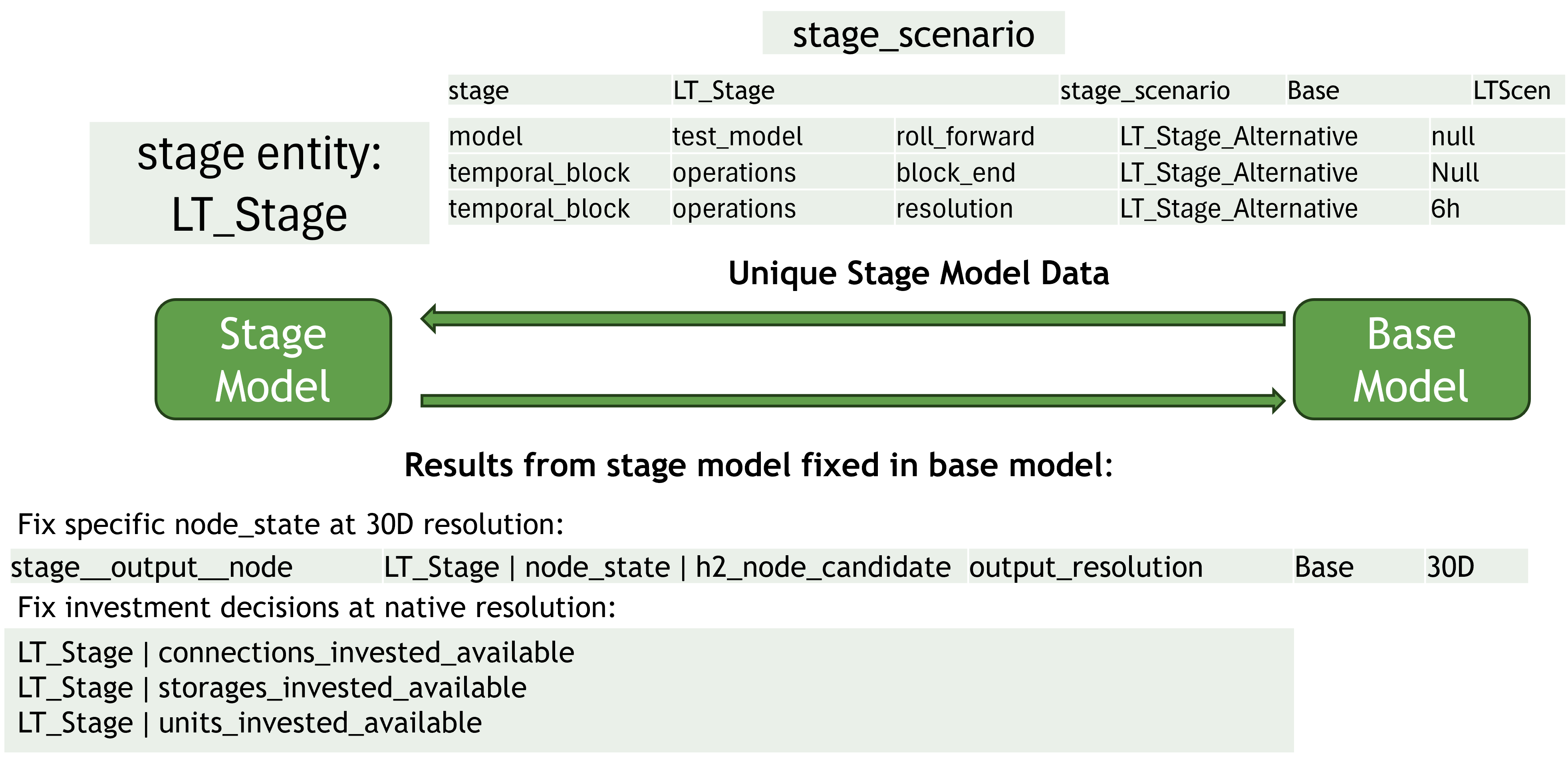

Now you have successfully created a Long Term Stage Model that feeds a selected node_state and all investment decisions to the Base Model

Run the model, making sure to run the "Base" scenario. Remember the LT_Stage_Scenarios purpose is only to specify the unique data for the stage model. It's not a scenario that you actually run (unless you would like to see the outputs of the long term model only).
